Deep learning model for ranking food recipes

keras

tensorflow

python

deep-learning

recommender-systems

Author

wovago

Published

April 28, 2023

Abstract

This projct demonstrates how to build a ranking model that can be used to score and rank recipes for a food recipe recommender system.

Introduction

In this analysis we will build a food recipe ranking model that can be used in recommender systems. We will build a user-item recommender system that can recommend recipes to users based on previous interactions. We will perform collaborative filtering with explicit feedback by using the recipes ratings as explicit user feedback. So given a user input ID, the system will return a list of ranked recipes IDs that might be of interest to that user based on that user’s rated recipes.

Recommender systems used in production typically consist of two phases:

The retrieval stage plays a crucial role in picking an initial set of several hundred candidates out of a vast pool of options. Its primary aim is to swiftly eliminate all candidates that fail to pique the user’s interest. Given that the retrieval model might need to sift through millions of candidates, it must be computationally efficient.

The next stage is the ranking stage, which further fine-tunes the outputs from the retrieval model to identify the optimal few recommendations. It will further narrow down the list of candidates retrieved during the retrieval stage and create a (ranked) shortlist of candidates.

In this analysis we will focus on building a ranking model that can used for ranking a list of candidates generated during the retrieval stage.

Load data

code

import os
import pprint
import re
import sys
from ast import literal_eval
from typing import Dict, Text

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns
import tensorflow as tf
import tensorflow_recommenders as tfrs

code

NROWS=10000
BATCH_SIZE=128

Load rating data

We will start the analysis by loading the interaction data and extracting the user_id, recipe_id and rating. For this proof-of-concept analysis we will only import the first 10000 entries for speeding up training iterations.

code

def load_data(
    file_path="./data/RAW_interactions.csv",
    cols=["user_id", "recipe_id", "rating"],
    nrows=NROWS,
):
    """Load ratings into Tensorflow dataset

    Returns:
        Tensorflow.dataset: Tensorflow dataset with ratings
    """
    ratings_df = pd.read_csv(
        file_path,
        usecols=cols,
        nrows=nrows,
    )

    if "user_id" in cols:
        ratings_df["user_id"] = ratings_df["user_id"].astype(str)

    if "recipe_id" in cols:
        ratings_df["recipe_id"] = ratings_df["recipe_id"].astype(str)

    ratings_df.fillna("", inplace=True)
    ratings_ds = tf.data.Dataset.from_tensor_slices(dict(ratings_df))
    return ratings_ds

code

ratings = load_data(nrows=NROWS)

code

for x in ratings.take(5).as_numpy_iterator():
    pprint.pprint(x)

{'rating': 4, 'recipe_id': b'40893', 'user_id': b'38094'}
{'rating': 5, 'recipe_id': b'40893', 'user_id': b'1293707'}
{'rating': 4, 'recipe_id': b'44394', 'user_id': b'8937'}
{'rating': 5, 'recipe_id': b'85009', 'user_id': b'126440'}
{'rating': 5, 'recipe_id': b'85009', 'user_id': b'57222'}

Create train and test data sets

For training and evaluating the ranking model we need to create a training and test data set. We will randomly shuffle the rating data and divide it into a training and test dataset using a 80/20 split.

code

tf.random.set_seed(42)
shuffled = ratings.shuffle(NROWS, seed=42, reshuffle_each_iteration=False)

NR_TRAIN = np.floor(0.8 * NROWS)
NR_TEST = NROWS - NR_TRAIN

train = shuffled.take(NR_TRAIN)
test = shuffled.skip(NR_TRAIN).take(NR_TEST)

Build ranking model

Before building the user and item models, we will get all unique user and recipe IDs, which will be used as fixed vocabularies for the StringLookup layer and are also necessary to determine the dimension of the subsequent Embedding layer. Now that we have the vocabulary sizes to create the user and item embeddings, we can proceed to building the ranking model.

code

unique_recipe_ids = np.unique(list(x['recipe_id'] for x in ratings.take(NROWS).as_numpy_iterator()))
unique_user_ids = np.unique(list(x['user_id'] for x in ratings.take(NROWS).as_numpy_iterator()))

Because a ranking model typically runs on fewer input candidates, the ranking model is not as computationally expensive as the retrieval model. We can therfore use a deeper model architecture. The ranking model architecture we will define consists of the user and item embedding layers, which are concatenated and feed into the ranking model, which is an multi-layer perception with a two densely connected layers. We will also add dropout to both dense layers to perform model regularization and to reduce the risk of overfitting.

So the model will take user and recipe IDs as inputs, which will get embedded into feature vectors by the user amd item model layers. Those feature vecutors will subsequenlty get concatenated and passed into the rating model, which will output a single score, which is the predicted user rating for a specific user ID and recipe ID.

code

class RankingModel(tf.keras.Model):
    def __init__(self):
        super().__init__()
        embedding_dimension = 32

        # Compute embeddings for users
        self.user_embeddings = tf.keras.Sequential(
            [
                tf.keras.layers.StringLookup(
                    vocabulary=unique_user_ids, mask_token=None
                ),
                tf.keras.layers.Embedding(
                    len(unique_user_ids) + 1,
                    embedding_dimension,
                ),
            ]
        )

        # Compute embeddings for recipes
        self.item_embeddings = tf.keras.Sequential(
            [
                tf.keras.layers.StringLookup(
                    vocabulary=unique_recipe_ids, mask_token=None
                ),
                tf.keras.layers.Embedding(
                    len(unique_recipe_ids) + 1,
                    embedding_dimension,
                ),
            ]
        )

        # Compute rating predictions
        self.ratings = tf.keras.Sequential(
            [
                # Pass ratings through a multilayer perceptron
                tf.keras.layers.Dense(256, activation="relu"),
                tf.keras.layers.Dropout(0.2),
                tf.keras.layers.Dense(64, activation="relu"),
                tf.keras.layers.Dropout(0.2),
                # Final outpt layer that will make the prdictions
                tf.keras.layers.Dense(1),
            ]
        )

    def call(self, inputs):
        user_id, recipe_id = inputs

        user_embedding = self.user_embeddings(user_id)
        recipe_embedding = self.item_embeddings(recipe_id)

        return self.ratings(tf.concat([user_embedding, recipe_embedding], axis=1))

Once we have built the ranking model we can define the FoodRecipeModel, which is a tfrs.models.Model that combines the network model with a retrieval task. The retrieval task computes the loss and RMSE during traing. The FoodRecipeModel will take care of the training loop.

code

class FoodRecipeModel(tfrs.models.Model):
    def __init__(self):
        super().__init__()
        self.ranking_model: tf.keras.Model = RankingModel()
        self.task: tf.keras.layers.Layer = tfrs.tasks.Ranking(
            loss=tf.keras.losses.MeanSquaredError(),
            metrics=[tf.keras.metrics.RootMeanSquaredError()],
        )

    def call(self, features: Dict[str, tf.Tensor]) -> tf.Tensor:
        return self.ranking_model((features["user_id"], features["recipe_id"]))

    def compute_loss(
        self, features: Dict[Text, tf.Tensor], training=False
    ) -> tf.Tensor:
        labels = features.pop("rating")

        rating_predictions = self(features)

        return self.task(labels=labels, predictions=rating_predictions)

We can now initialize and compile the model. We will also add the Keras Adagrad optimizer to optimize the ranking model.

code

model = FoodRecipeModel()
model.compile(optimizer=tf.keras.optimizers.Adagrad(learning_rate=0.05))

Train ranking model

For improved perforance, we cache the train and data sets.

code

cached_train = train.shuffle(NROWS).batch(BATCH_SIZE).cache()
cached_test = test.batch(BATCH_SIZE).cache()

WE define a Keras callback that monitors the RMSE during training and will stop training if the RMSE does not improve during three consecutive training epochs. We also specify to return the best model weights in case of early stopping by setting restore_best_weigghts=true.

code

es_callback = tf.keras.callbacks.EarlyStopping(
    monitor="root_mean_squared_error",
    min_delta=0,
    patience=3,
    verbose=0,
    mode="auto",
    baseline=None,
    restore_best_weights=True,
    start_from_epoch=0,
)

Now that we have cached the training set and passed the early stopping callbackc to the model we can start the training.

code

history = model.fit(cached_train, epochs=50, callbacks=es_callback)

Epoch 1/50
63/63 [==============================] - 2s 6ms/step - root_mean_squared_error: 1.5313 - loss: 2.3102 - regularization_loss: 0.0000e+00 - total_loss: 2.3102
Epoch 2/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 1.2410 - loss: 1.5232 - regularization_loss: 0.0000e+00 - total_loss: 1.5232
Epoch 3/50
63/63 [==============================] - 0s 5ms/step - root_mean_squared_error: 1.1821 - loss: 1.3796 - regularization_loss: 0.0000e+00 - total_loss: 1.3796
Epoch 4/50
63/63 [==============================] - 0s 7ms/step - root_mean_squared_error: 1.0298 - loss: 1.0414 - regularization_loss: 0.0000e+00 - total_loss: 1.0414
Epoch 5/50
63/63 [==============================] - 1s 9ms/step - root_mean_squared_error: 0.7623 - loss: 0.5700 - regularization_loss: 0.0000e+00 - total_loss: 0.5700
Epoch 6/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.5969 - loss: 0.3493 - regularization_loss: 0.0000e+00 - total_loss: 0.3493
Epoch 7/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.5325 - loss: 0.2777 - regularization_loss: 0.0000e+00 - total_loss: 0.2777
Epoch 8/50
63/63 [==============================] - 0s 5ms/step - root_mean_squared_error: 0.4873 - loss: 0.2328 - regularization_loss: 0.0000e+00 - total_loss: 0.2328
Epoch 9/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.4556 - loss: 0.2033 - regularization_loss: 0.0000e+00 - total_loss: 0.2033
Epoch 10/50
63/63 [==============================] - 0s 7ms/step - root_mean_squared_error: 0.4337 - loss: 0.1844 - regularization_loss: 0.0000e+00 - total_loss: 0.1844
Epoch 11/50
63/63 [==============================] - 1s 9ms/step - root_mean_squared_error: 0.4179 - loss: 0.1712 - regularization_loss: 0.0000e+00 - total_loss: 0.1712
Epoch 12/50
63/63 [==============================] - 1s 9ms/step - root_mean_squared_error: 0.4060 - loss: 0.1615 - regularization_loss: 0.0000e+00 - total_loss: 0.1615
Epoch 13/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.3962 - loss: 0.1538 - regularization_loss: 0.0000e+00 - total_loss: 0.1538
Epoch 14/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.3877 - loss: 0.1473 - regularization_loss: 0.0000e+00 - total_loss: 0.1473
Epoch 15/50
63/63 [==============================] - 0s 5ms/step - root_mean_squared_error: 0.3803 - loss: 0.1417 - regularization_loss: 0.0000e+00 - total_loss: 0.1417
Epoch 16/50
63/63 [==============================] - 0s 5ms/step - root_mean_squared_error: 0.3735 - loss: 0.1367 - regularization_loss: 0.0000e+00 - total_loss: 0.1367
Epoch 17/50
63/63 [==============================] - 0s 7ms/step - root_mean_squared_error: 0.3671 - loss: 0.1321 - regularization_loss: 0.0000e+00 - total_loss: 0.1321
Epoch 18/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.3611 - loss: 0.1278 - regularization_loss: 0.0000e+00 - total_loss: 0.1278
Epoch 19/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.3553 - loss: 0.1238 - regularization_loss: 0.0000e+00 - total_loss: 0.1238
Epoch 20/50
63/63 [==============================] - 1s 10ms/step - root_mean_squared_error: 0.3499 - loss: 0.1200 - regularization_loss: 0.0000e+00 - total_loss: 0.1200
Epoch 21/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.3445 - loss: 0.1164 - regularization_loss: 0.0000e+00 - total_loss: 0.1164
Epoch 22/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.3395 - loss: 0.1130 - regularization_loss: 0.0000e+00 - total_loss: 0.1130
Epoch 23/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.3342 - loss: 0.1095 - regularization_loss: 0.0000e+00 - total_loss: 0.1095
Epoch 24/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.3289 - loss: 0.1061 - regularization_loss: 0.0000e+00 - total_loss: 0.1061
Epoch 25/50
63/63 [==============================] - 0s 7ms/step - root_mean_squared_error: 0.3236 - loss: 0.1027 - regularization_loss: 0.0000e+00 - total_loss: 0.1027
Epoch 26/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.3183 - loss: 0.0993 - regularization_loss: 0.0000e+00 - total_loss: 0.0993
Epoch 27/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.3128 - loss: 0.0959 - regularization_loss: 0.0000e+00 - total_loss: 0.0959
Epoch 28/50
63/63 [==============================] - 0s 7ms/step - root_mean_squared_error: 0.3075 - loss: 0.0927 - regularization_loss: 0.0000e+00 - total_loss: 0.0927
Epoch 29/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.3014 - loss: 0.0891 - regularization_loss: 0.0000e+00 - total_loss: 0.0891
Epoch 30/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.2957 - loss: 0.0857 - regularization_loss: 0.0000e+00 - total_loss: 0.0857
Epoch 31/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.2894 - loss: 0.0821 - regularization_loss: 0.0000e+00 - total_loss: 0.0821
Epoch 32/50
63/63 [==============================] - 0s 7ms/step - root_mean_squared_error: 0.2832 - loss: 0.0786 - regularization_loss: 0.0000e+00 - total_loss: 0.0786
Epoch 33/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.2769 - loss: 0.0752 - regularization_loss: 0.0000e+00 - total_loss: 0.0752
Epoch 34/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.2702 - loss: 0.0716 - regularization_loss: 0.0000e+00 - total_loss: 0.0716
Epoch 35/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.2639 - loss: 0.0683 - regularization_loss: 0.0000e+00 - total_loss: 0.0683
Epoch 36/50
63/63 [==============================] - 0s 7ms/step - root_mean_squared_error: 0.2574 - loss: 0.0649 - regularization_loss: 0.0000e+00 - total_loss: 0.0649
Epoch 37/50
63/63 [==============================] - 0s 7ms/step - root_mean_squared_error: 0.2511 - loss: 0.0618 - regularization_loss: 0.0000e+00 - total_loss: 0.0618
Epoch 38/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.2445 - loss: 0.0586 - regularization_loss: 0.0000e+00 - total_loss: 0.0586
Epoch 39/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.2387 - loss: 0.0559 - regularization_loss: 0.0000e+00 - total_loss: 0.0559
Epoch 40/50
63/63 [==============================] - 0s 7ms/step - root_mean_squared_error: 0.2344 - loss: 0.0539 - regularization_loss: 0.0000e+00 - total_loss: 0.0539
Epoch 41/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.2325 - loss: 0.0530 - regularization_loss: 0.0000e+00 - total_loss: 0.0530
Epoch 42/50
63/63 [==============================] - 0s 6ms/step - root_mean_squared_error: 0.2396 - loss: 0.0564 - regularization_loss: 0.0000e+00 - total_loss: 0.0564
Epoch 43/50
63/63 [==============================] - 0s 5ms/step - root_mean_squared_error: 0.2475 - loss: 0.0603 - regularization_loss: 0.0000e+00 - total_loss: 0.0603
Epoch 44/50
63/63 [==============================] - 0s 7ms/step - root_mean_squared_error: 0.2510 - loss: 0.0622 - regularization_loss: 0.0000e+00 - total_loss: 0.0622

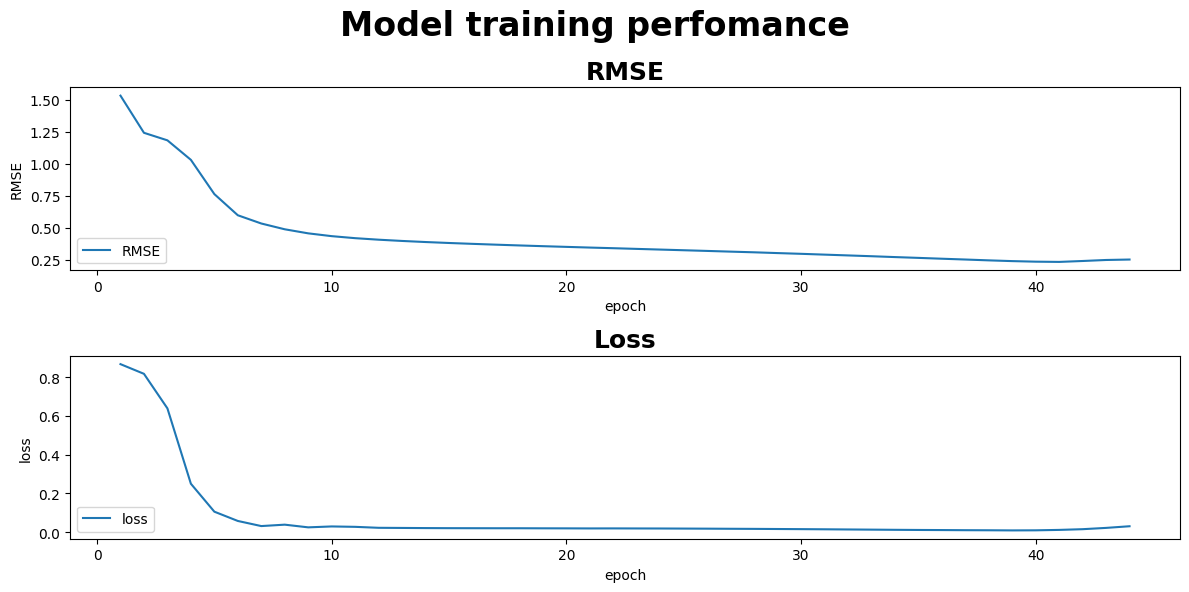

We can visualize the training loss and RMSE during training. We can observe that both training loss and RMSE are decreasing, indicating that the model performance is improving.

code

EPOCHS = list(range(1,len(history.history['root_mean_squared_error']) + 1))

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(12, 6))
fig.suptitle('Model training perfomance', fontsize=24, fontweight='bold')

ax1.plot(EPOCHS, history.history['root_mean_squared_error'])
ax1.set_title('RMSE', fontsize=18, fontweight='bold')
ax1.set_xlabel('epoch')
ax1.set_ylabel('RMSE')
ax1.legend(['RMSE'], loc='lower left')

ax2.plot(EPOCHS, history.history['loss'])
#ax2.plot(EPOCHS, history.history['val_loss'])
ax2.set_title('Loss', fontsize=18, fontweight='bold')
ax2.set_xlabel('epoch')
ax2.set_ylabel('loss')
ax2.legend(['loss'], loc='lower left')

fig.tight_layout()

Model evaluation

We can observe that the ranking model performs worse on the test set compared to the training set. The model might be overfitting because it is memorizing data that is has seen. Models with many parameters are prone to overfitting. We could mediate this by increasing the regularization in the embedding layers in the user and item models. We could also increase the Dropout rate in the Dense layers of the ranking model.

code

pd.DataFrame([model.evaluate(cached_test, return_dict=True)])

16/16 [==============================] - 0s 4ms/step - root_mean_squared_error: 1.3924 - loss: 1.9466 - regularization_loss: 0.0000e+00 - total_loss: 1.9466

	root_mean_squared_error	loss	regularization_loss	total_loss
0	1.392353	2.03689	0	2.03689

Model predictions

Compute ranking scores

code

def compute_ranking(user_id, recipe_ids, verbose=True):
    ratings_pred = {}

    for recipe_id in recipe_ids:
        ratings_pred[recipe_id] = model(
            {"user_id": np.array([user_id]), "recipe_id": np.array([recipe_id])}
        )

    if verbose:
        print("Ratings:")
        for recipe_id, score in sorted(ratings_pred.items(), key=lambda x: x[1], reverse=True):
            print(f"{recipe_id}: {score[0][0]:.4f}")

    return ratings_pred

Let’s get the first 100 recipe IDs from the test set to compute the rankings.

code

test_user = "38094"
test_recipe_ids = np.unique(list(x['recipe_id'] for x in test.take(NROWS).as_numpy_iterator()))[:100]

Using a test user ID and a candidate list containing 100 recipe IDd. We can commpute the ranking scores for all candidate recipe IDs.

code

ranking = compute_ranking(user_id=test_user, recipe_ids=test_recipe_ids, verbose=False)

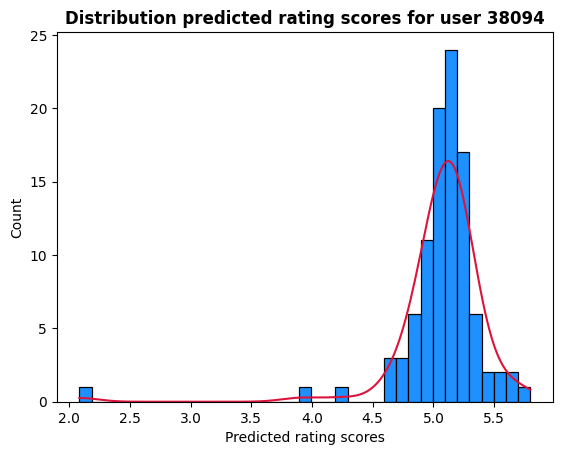

We can also inspect the distribution of the predicted ratings for out test user. We can observer that the scores follow a normal distribution with mean rating around 5.

code

def get_scores(ranking_dict):
    sorted_list = [
        (int(recipe_id), float(scores[0][0]))
        for recipe_id, scores in sorted(
            ranking_dict.items(), key=lambda x: x[1], reverse=True
        )
    ]
    _, scores_pred = zip(*sorted_list)
    return scores_pred

scores_pred = get_scores(ranking_dict=ranking)
ax = sns.histplot(data=scores_pred,
                    color='crimson',
                    facecolor='dodgerblue',
                    kde=True,
                    stat='count')
ax.set_xlabel("Predicted rating scores")
ax.set_title(
        f"Distribution predicted rating scores for user {test_user}",
        fontsize=12,
        fontweight="bold",
);

Annotate ranked items

We create a lookup table that maps recipe IDs to recipe name and description. We can then use this lookup table to annotate the recipe IDs.

code

mapping_df = pd.read_csv(
    "./data/RAW_recipes.csv", usecols=["name", "id", "description"], index_col="id"
)
mapping_df.head()

	name	description
id
137739	arriba baked winter squash mexican style	autumn is my favorite time of year to cook! th...
31490	a bit different breakfast pizza	this recipe calls for the crust to be prebaked...
112140	all in the kitchen chili	this modified version of 'mom's' chili was a h...
59389	alouette potatoes	this is a super easy, great tasting, make ahea...
44061	amish tomato ketchup for canning	my dh's amish mother raised him on this recipe...

code

def annotate_top_k(ranking_dict, lookup_table=mapping_df, k=5):
    sorted_list = [
        (int(recipe_id), float(scores[0][0]))
        for recipe_id, scores in sorted(
            ranking_dict.items(), key=lambda x: x[1], reverse=True
        )
    ]
    ids, scores_pred = zip(*sorted_list[:k])
    annotated_df = lookup_table.loc[ids, ["name", "description"]].copy()
    annotated_df["name"] = annotated_df["name"].apply(lambda x: re.sub(" +", " ", x))
    annotated_df["description"] = (
        annotated_df["description"].fillna("NA").apply(lambda x: re.sub(" +", " ", x))
    )
    annotated_df["score"] = scores_pred
    return annotated_df

We can now extract the first top k ranked items and annotate the recipe IDs with recipe name and description. We will extract the first 20 items and annotate them.

code

ranked_df = annotate_top_k(ranking_dict=ranking, k=20)
ranked_df

	name	description	score
id
138359	sun dried tomato cream sauce	i'm in heaven when i have this. it's so rich &...	5.797815
117220	penne with slow roasted cherry tomatoes and go...	from sarah moulton on sara's secrets, this is ...	5.696644
151223	romaine with oranges and pecans	i was very suprized not to fine this recipe on...	5.631363
112973	basic mashed potatoes	you can use any kind of potato in this recipe....	5.561831
100104	pesche italian peach wedding cookies	years ago, my grandmother and great-aunt went ...	5.559312
1207	country rice pudding	NA	5.416039
101583	potato green pepper tomato gratin	this is cooked similar to a scalloped potato r...	5.405591
104084	peanut butter and pickle sandwiches	don't dismiss it until you try it. you probabl...	5.364321
135365	warm roast pumpkin salad	looking for australian recipes for the zaar wo...	5.351986
12044	venison stew	this is a winter-time favorite. nothing warms ...	5.347132
144567	boston baked beans with bacon	since you are cooking the beans in the oven fo...	5.310084
138396	perfect meatloaf sandwich	this recipe was published in a 1999 issue of w...	5.305158
13093	bourbon marinade	this is an old recipe, but here is my twist on...	5.296463
138647	beer battered fish with tartar sauce	one of the things that sticks out most in my m...	5.283887
13142	butternut squash with onions and pecans	NA	5.277822
137580	traditional italian tiramisu	i got the main recipe for this tiramisu from t...	5.275895
101783	aunt dot s hot dish	my husband's grandmother is famous for making ...	5.272909
111182	bourbon street frittata	my husband loves andouille sausage. he tried t...	5.243751
14367	french silk pie cooked	all the silky richness of the original recipe ...	5.241592
133054	delicious dill dip for veggies	this a very easy recipe i've been making for 2...	5.238854

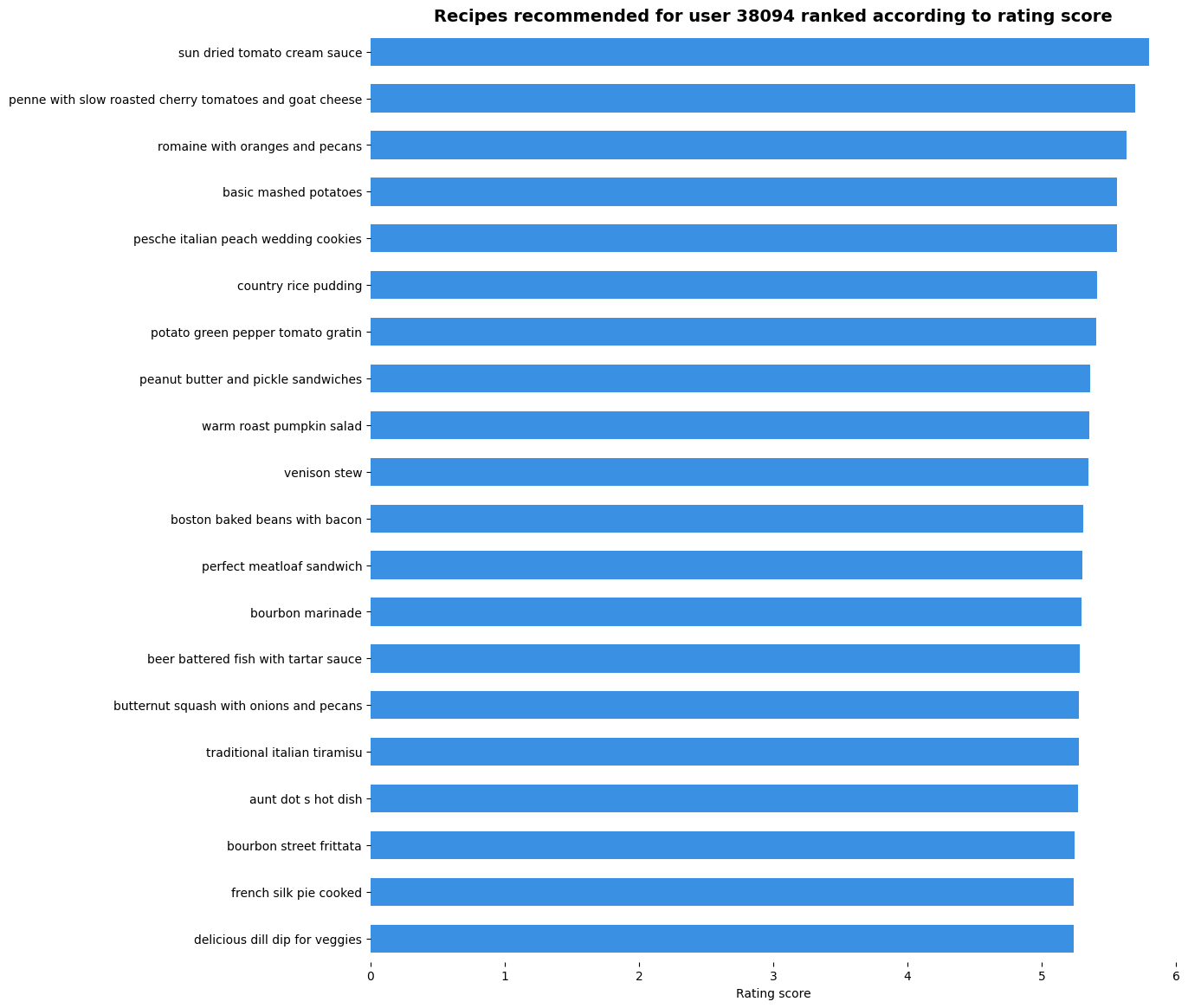

We can alos visualize those top 20 ranked recipes with a simple bar plot.

code

plt.figure(figsize=(12, 14))
ax = sns.barplot(
        x="score",
        y="name",
        data=ranked_df,
        label="Rating score",
        color="dodgerblue",
        width=0.6,
)
ax.set(xlim=(0, 6), ylabel="", xlabel="Rating score")
ax.set_title(
        f"Recipes recommended for user {test_user} ranked according to rating score",
        fontsize=14,
        fontweight="bold",
)
sns.despine(left=True, bottom=True)
